3-wire serial LCD interface for the PIC

version 2
based on the idea of Myke Predko


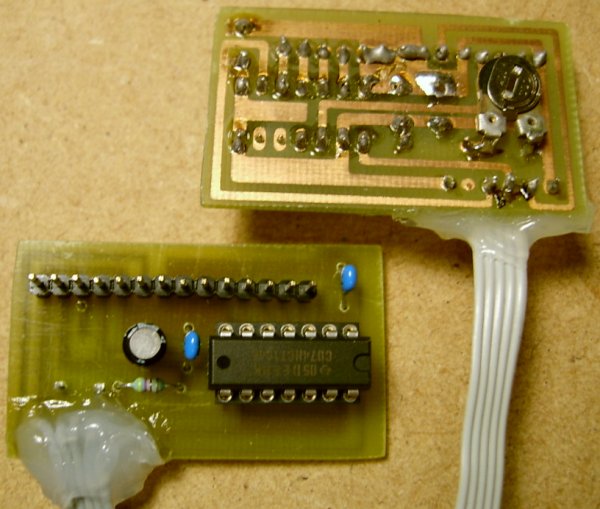

If you are developing applications for the PIC mcu, and miss debugging tools, or don't have enough I/O pins for a parallel LCD interface in your design, this serial interface can help printing debug messages and/or reduce the pin count. This version uses a Hitachi HD44780 compatible LCD module in 4-bit mode. The interface is based on the idea of Myke Predko. See this link for more details.


My default PIC pins for the interface connection are RB4 (EN), RB5 (CK), RB6 (DA). I choose these pins due to PCB layout simplicity on the 18 pin devices. It is the task of your application to correctly initialize the TRIS bits of the used port pins!

LCD library (001) source for the PIC16F84 lcdlib.asm
LCD library header file for linked projects
example program lcdtest.asm
HD44780 LCD controller datasheet hd44780.pdf

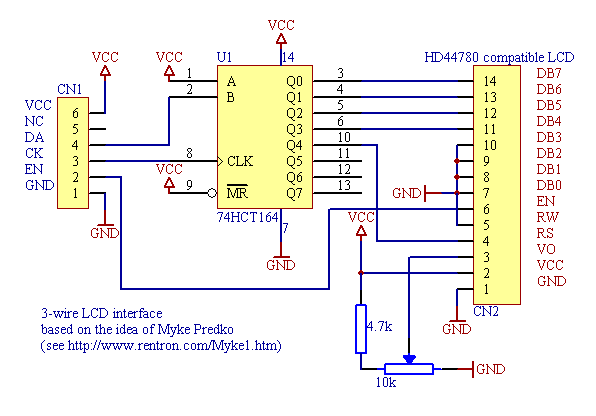

schematic diagram
